Activity: Copilot Edits

-1- Clone the repo

Make sure you have cloned the following repository:

git clone https://github.com/softchris/flask-sample.git

-2- Refactor

1. Select "Edits" in the chat window dropdown to activate the Edits mode.

2. Type the following prompt:

   make the project easier to maintain, divide it up into layers

   You may need an additional prompt to get the desired results, something like:

   create the models as classes, also add sample data

   Here's what you can expect, your api.py has now been divided into layers:

   • models.py
   • services.py
   • api.py

-3- Add a new feature

Add the following prompt:

add Users as a new type

This should make changes in the following files:

• models.py
• services.py
• api.py

-4- Add a frontend

So far, you've been looking at the backend. Now, let's add a frontend to the project. You can use the following prompt:

Add a frontend, use React and TypeScript, add a simple page to show the products. organize in a frontend and backend folder respectively

This will take a couple of minutes but will end producing a new folder structure, something like this:

├── backend
│   ├── app.py
|   ├── models.py
│   ├── services.py
│   └── requirements.txt
├── frontend
│   ├── package.json
│   ├── src
│   │   ├── App.tsx
│   │   ├── components
│   │   │   ├── Product.tsx
│   │   │   └── User.tsx
│   │   ├── pages
│   │   │   ├── ProductPage.tsx
│   │   │   └── UserPage.tsx
│   │   └── services
│   │       ├── productService.ts
│   │       └── userService.ts
│   └── tsconfig.json
└── README.md

Tweaks

note

You might need to do some small tweaks like adding a way to start the frontend and backend at the same time. You can use concurrently for that.

• Write prompt similar to:

  Add a way to start the frontend and backend at the same time, call the script start:all

Run the app

note

You might also need to add CORS support, to ensure frontend and backend can communicate.

• Write a prompt similar to:

  Add CORS support to the backend

• Start the backend and frontend and check if everything is working as expected. You can use the following commands:

cd frontend
npm install
npm run start:all

note

If you run into trouble, use this branch fullstack before continuing:

https://github.com/softchris/flask-sample/tree/fullstack

If you wish to continue with your own code then ignore the below commands.

If needed, run the following commands:

git fetch origin fullstack
git checkout -b fullstack origin/fullstack

-5- Improve the UI

1. Now we will make things look better, you can use the following prompt:

   add boostrap to the frontend and udr bootstrap components to show data

   This should make Copilot add bootstrap to the frontend and change the frontend code to use Boostrap components.

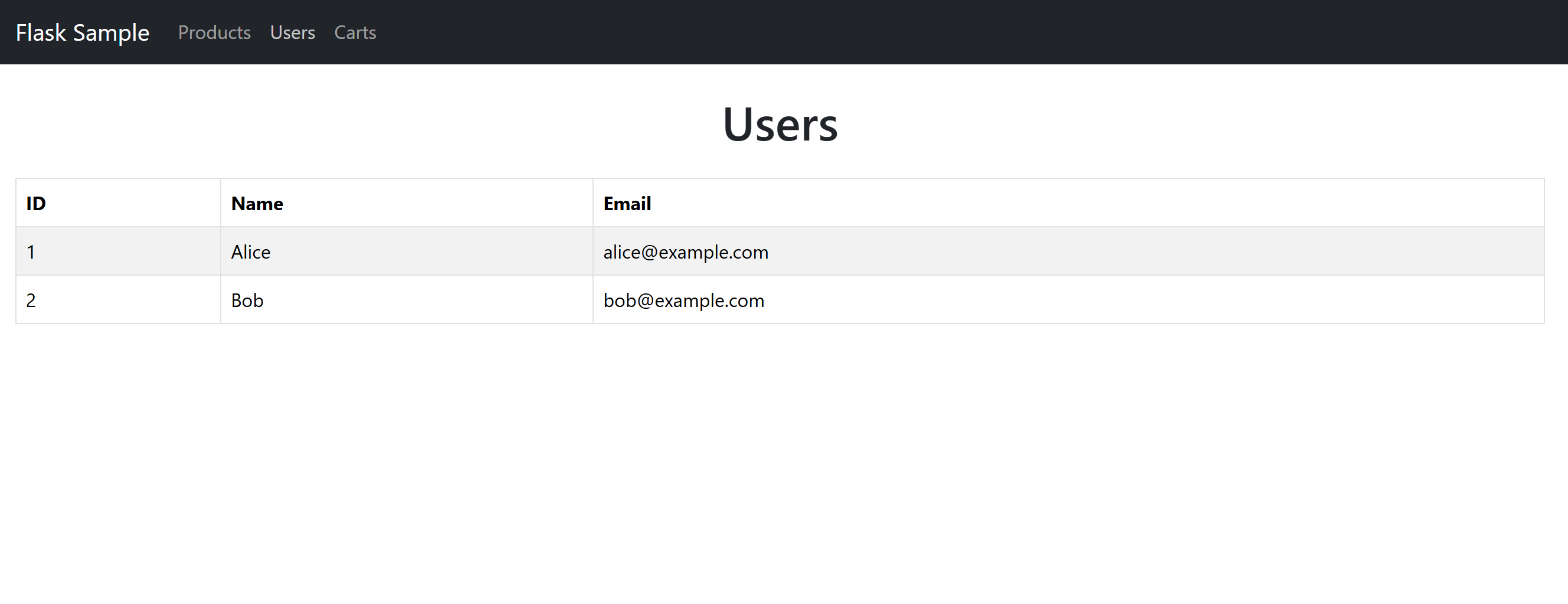

   You should see an app similar to:



2. Let's add a top menu and support the other topics like users and carts:

   Add a top menu for products, users and carts, there should be components for each topic



Here's the branch if you want to check out one possible outcome:

https://github.com/softchris/flask-sample/tree/fullstack-menu

That is, check out the fullstack-menu branch:

git fetch origin fullstack-menu
git checkout -b fullstack-menu origin/fullstack-menu
